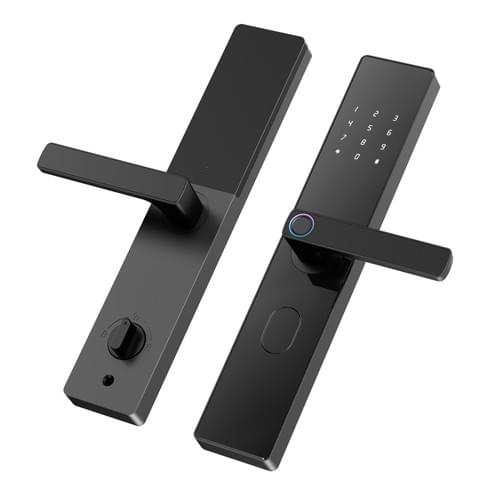

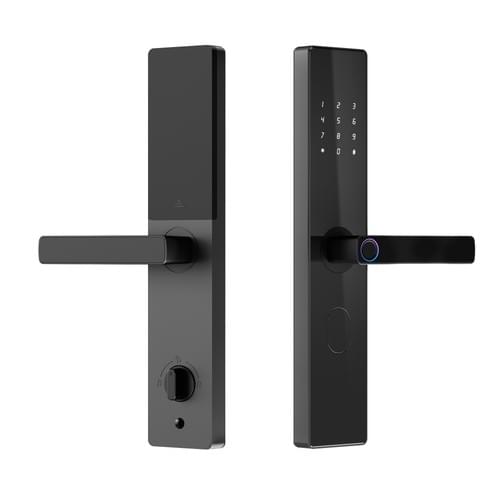

The F10 Apartment & Hotel Management Smart Lock is engineered as a unified access control terminal for multi-room, multi-tenant properties such as rental apartments, serviced residences, and hotel-style units. Built with aerospace aluminum alloy and a tempered glass touch panel, it provides durability, modern aesthetics, and long-term operational stability.

Its multi-authentication architecture includes:

• Fingerprint recognition

• Password unlocking

• IC/ID card access

• Mechanical key

• App-based unlock (across multiple hotel management platforms)

• Temporary, periodic, and remote passwords

This flexible system design supports a wide spectrum of operational environments and user scenarios.

Hardware Architecture & Power System

The device is powered by:

• 8 AA batteries (standard)

• Type-C emergency power input

• Ultra-low standby current (≤50 μA)

Internal specifications include:

• Voltage: 4.5–9V

• Working humidity: ≤95%

• Operating temperature: -20°C to 70°C

• Panel material: Aerospace aluminum alloy

• Individual weight: 1.18 kg

• Packaging weight: approx. 20.12 kg (10 units)

Its robust mechanical structure includes compatibility with the 6068 mortise, enabling rapid installation across hotel and apartment door types.

Multi-Platform Hotel & Apartment Management

The F10 supports three major software ecosystems:

1. Tongtong Lock / TTLock System

• BLE communication

• Remote password delivery

• Web/APP management

• Gateway expansion for IoT connectivity

2. Haofang Apartment System

• Suitable for long-term rental apartments

• Supports remote tenant management

• Automated check-in/out processes

• Access logs & billing integration

3. Hotel HT System

• Suitable for hotel groups

• Electronic card issuing (Mifare format)

• Check-in/check-out synchronization

• Multi-terminal management (PC, mobile, PAD)

• Supports temporary, guest, and staff access levels

Networking & Communication Options

The F10 supports versatile networking modes depending on platform:

• Bluetooth (standard)

• WiFi (optional module)

• Gateway / IoT gateway

• NB-IoT cellular networking

This ensures compatibility for both standalone rooms and large-scale hotel/apartment clusters.

Supported Hardware Ecosystem

To assist hotel and apartment operations, F10 integrates with multiple peripheral devices:

• Gateway Unit: Enables remote unlocking, password syncing, and online monitoring

• Wireless Doorbell: Allows remote notifications and guest arrival alerts

• Card Issuer Module: Supports Mifare 4/7/1 card issuance for hotel-style card rooms

• Door Sensor: Detects open/close state, intrusion, illegal opening

• Relay Module: Enables linkage with access gates, elevators, power switches

• Fingerprint Reader Expansion: Supports additional biometric entrances for specific zones

This hardware ecosystem is especially suited for large management properties.

Security & Access Control Features

The lock includes:

• 50,000-times mechanical endurance

• Multiple alarm modes (low power, error input, forced entry)

• Virtual password anti-peep protection

• Offline card issuance (HT system)

• System-based permission hierarchy: guest, cleaner, admin

• Real-time logs via software platforms

This enhances both guest experience and operator management efficiency.

Usage Scenarios（使用场景特点）

The F10 is optimized for:

Apartment Management

• Automated tenant turnover

• Remote access authorization

• Multi-room centralized management

Hotel Operations

• Electronic card issuance

• Guest access scheduling

• Integration with reception/PMS systems

Long-Term Rental & Co-Living Spaces

• Shared access for roommates

• Cleaner/maintenance time-limited access

Smart Community / Property Management

• Building-level IoT linking

• Elevator and corridor access linkage

• Shared door and public area control

High-Density Room Deployment

• Suitable for properties with 100+ units

• Unified gateway coverage

• Centralized logging and remote control
