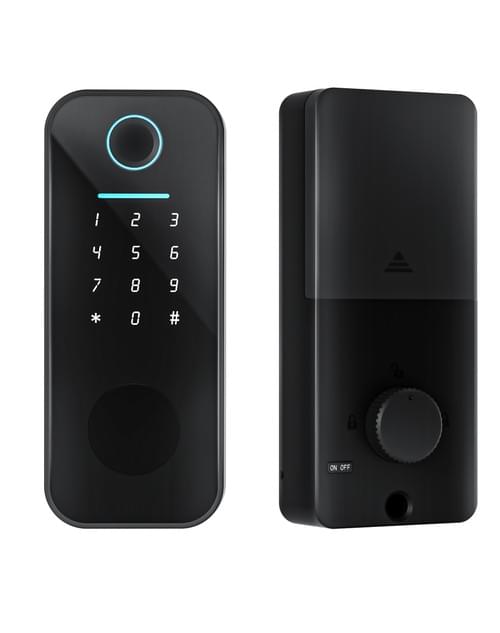

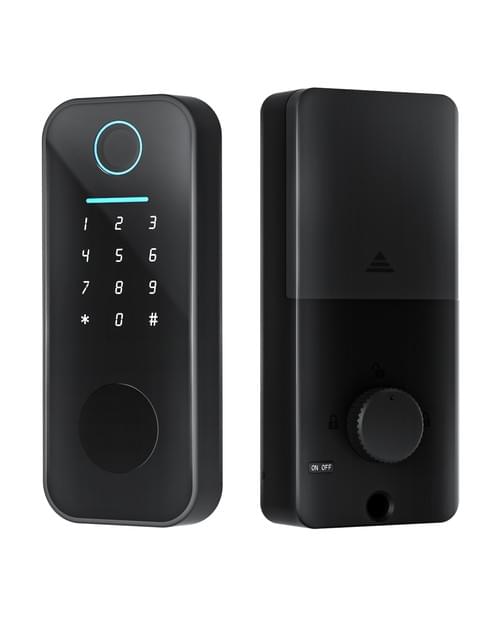

The FF01 Bluetooth Lock is engineered as a compact, multi-credential access control device suitable for residential, commercial, and rental environments. Its authentication architecture includes fingerprint unlocking, password input, RFID induction card recognition, mechanical key backup, and remote password distribution through mobile applications. An optional FP/FP+C fingerprint module enhances biometric accuracy, ensuring secure and reliable identity verification.

The FF01 is available in two system configurations: FF01-TT (TTLock System) and FF01-BLE (Tuya BLE System).

FF01-TT — TTLock System Version

The TTLock version operates using Bluetooth connectivity as the core communication layer, with optional support for gateway, NB-IoT, or WiFi expansion. Supported unlocking methods include fingerprint, password, induction card, key, and time-based password distribution through the TTLock app.
Its system tools include Web management, app control, mini program compatibility, Windows installation packages, and Lux installation utilities.
Extended features include remote control via gateway, multi-level permission management, and detailed user activity logs.

FF01-BLE — Tuya BLE System Version

The Tuya BLE version supports 9 languages and integrates with the Tuya Smart ecosystem, enabling WeChat mini-program control, Bluetooth credential delivery, and optional WiFi/Zigbee gateway connectivity.
It supports fingerprint, password, card, key, and combination unlock modes, along with remote password distribution, nanny time-limited access, and frequent-open mode.
The system is compatible with Tuya Smart APP, WeChat APP, and various cloud-link automation scenes.

Hardware Structure & Electrical Parameters

Constructed with integrated aluminum alloy molding, the FF01 achieves a balance of durability and compact form.
Key specifications include:

• Standby power consumption: ≤80 μA

• Working current: 250–360 mA

• Emergency power supply: Type-C

• Individual weight: 1.20 kg

• Outer box size: 460×260×450 mm

• Color options: Black

• Packing quantity: 10 units

Security functionalities include low-voltage alarms, five consecutive error alarms, false password alarms, lock-body alerts, and detailed lock-record viewing for auditing and monitoring.

Network & Communication

Standard communication is established through Bluetooth, with optional expanded support for:

• NB-IoT networking

• WiFi networking

• Gateway remote access

This ensures FF01 can operate either as a local standalone smart lock or as part of a cloud-linked access control ecosystem.

Usage Scenarios（使用场景特性）

The FF01 is optimized for:

• Residential front doors

• Smart rental apartments / AirBnB access management

• Office rooms and workspace entry control

• Dormitories and student housing

• Small business storefronts and private offices

• Storage rooms and utility compartments requiring compact smart access

Its compact panel design and multi-credential compatibility make it ideal for installations where space efficiency and mobile-based access management are priorities.

Software Platform & Operational Tools

Supported platforms include:

• Web management systems

• Mobile APP

• WeChat mini program

• Windows installation software

• Lux installation package

These tools provide administrators with centralized credential management, access allocation, auditing, and remote operation.
