The Fingerprint Collector Module is an advanced biometric acquisition device engineered for integration with intelligent access control, identity verification terminals, and IoT-connected security platforms. Built with a semiconductor push-type fingerprint sensor, it provides high-accuracy acquisition, rapid recognition, and robust anti-interference performance.

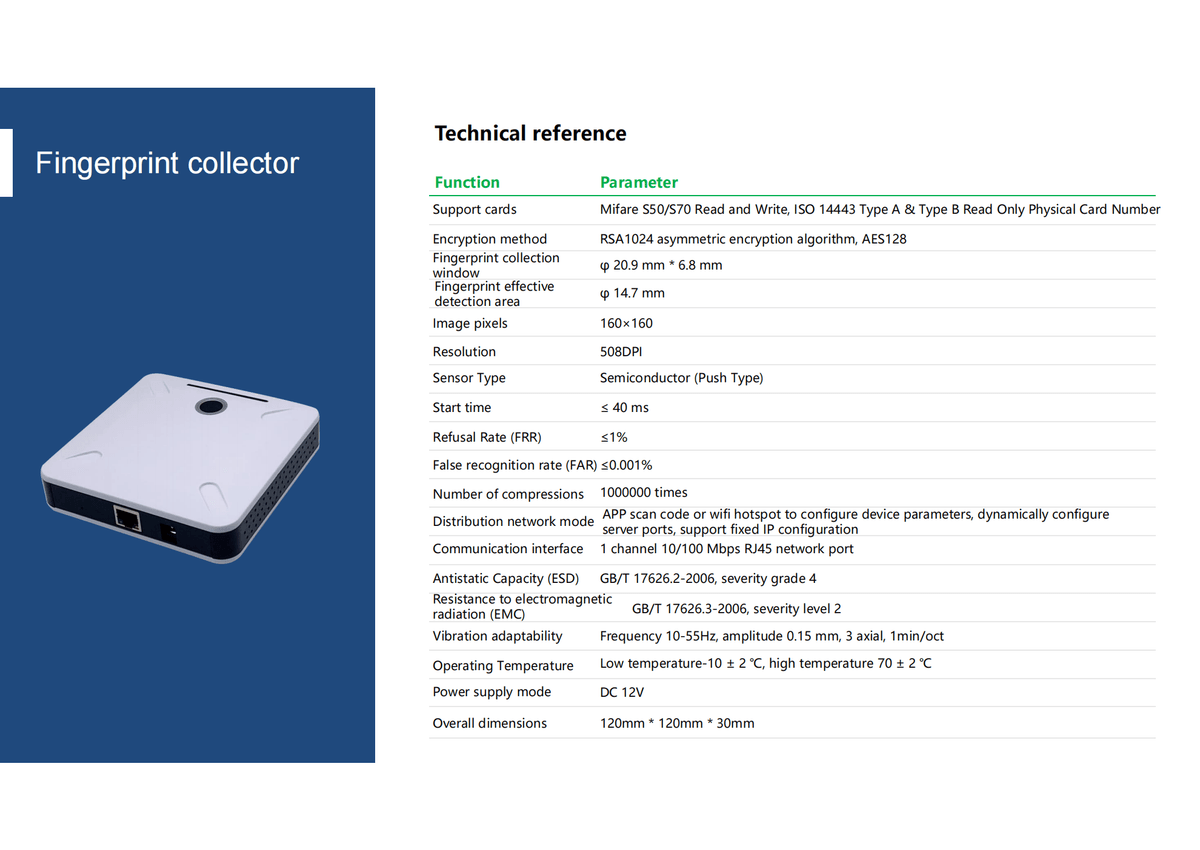

Biometric Performance & Sensor Specifications

The module offers high-fidelity biometric capture:

• Collection window: φ20.9 mm × 6.8 mm

• Effective detection area: φ14.7 mm

• Image pixels: 160 × 160

• Resolution: 508 DPI

• Start time: ≤40 ms

• Sensor type: Semiconductor (push type)

With a refusal rate (FRR ≤1%) and false acceptance rate (FAR ≤0.001%), the collector ensures high accuracy for enterprise-grade authentication.

Security Architecture & Encryption Technology

To ensure uncompromised data protection, the module incorporates:

• RSA1024 asymmetric encryption

• AES128 symmetric encryption

• Secure communication and transmission of biometric templates

• Protection against spoofing and data interception

Such security standards are suitable for financial, industrial, and property-management environments.

Durability & Operational Reliability

Designed for long-term stability:

• Compression durability: Up to 1,000,000 presses

• Antistatic protection: GB/T 17626.2-2006, severity grade 4

• EMC resistance: GB/T 17626.3-2006, severity level 2

• Vibration adaptability:

  • 10–55 Hz

  • 0.15 mm amplitude

  • 3-axis vibration

  • 1 min/oct sweep

Operational temperature performance:

• Low temp: -10 ± 2°C

• High temp: 70 ± 2°C

Suitable for harsh installation environments.

Networking & Communication Capabilities

The fingerprint collector offers flexible deployment via:

• APP scan code or WiFi hotspot for parameter configuration

• Dynamic server port configuration

• Optional fixed IP addressing

• RJ45 port (10/100 Mbps) for stable wired communication

This enables integration with smart-access servers, cloud authentication platforms, and local access control systems.

Power & Dimensions

• Power supply: DC 12V

• Dimensions: 120 mm × 120 mm × 30 mm

Compact form factor ensures easy installation on walls, kiosks, lift panels, or smart-lock controller boxes.

Use Case Scenarios（使用场景特点）

1. Smart Access Control Systems

• Residential communities

• Office buildings

• Government facilities

• Turnstile gates

2. Smart Door Locks & Apartment Platforms

• TTLock, LoRa, Tuya, self-developed platforms

• Centralized biometric enrollment for multi-unit properties

3. IoT Identity Authentication

• Vending machines

• Delivery lockers

• Parcel pickup cabinets

• Parking systems

4. Industrial & Commercial Security

• Employee attendance terminals

• High-security lab & server room entry

• Warehouse and logistics tracking systems
